Paddy Straw Biomass Plant
Continuous Shredded paddy straw and Liquid Manure mixing and Supply
In plant of rice straw or Paddy to Biomass production. Various Shredder and Extruder are available in market but it is biggest challenge after shredding of paddy straw is difficult to mix with manure or Biochar liquid and supply continuously to Biomass extruder which produce final raw material to anaerobic digestion Tank.
Following are challenges and disadvantages with Manual handling, mixing and supply shredded Paddy with Manure or biochar liquid.
Required Large space
Uniform mixing with liquid manure or biochar is not possible
Required Lot of manpower
Continuous feeding to Extruder machine is not possible
Only 40% material can be extruder
Metasis has complete solution to controlled mixing and supply of shredded Paddy and Liquid Manure or biochar.

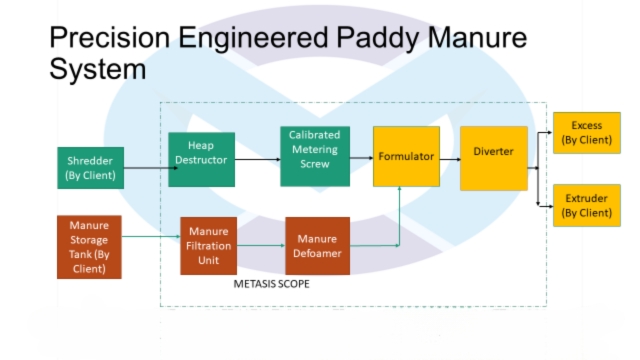

Precision Engineered paddy Manure System
Benefit
Continuous and controlled supply of paddy+ liquid mixer to shredded
80% space Utilization
Double Production rate
No manpower required, avoid manpower production dependency.
Zero Production manpower cost.
Equipment’s inside
Heap Destructor :- It insure there will be no heap creation of dry material in tanks.
Metering screw :- It continuously Measure and supply Dry Material to Formulator Machine. It give continuous control to process dry material.
Formulator Machine :- It continuously mix Dry Paddy material with Liquid Manure or biochar. And supply to Bio Extruder Continuously.
Manure Filtration Unit :- Filtration unit remove big solid particle online continuously.
Electrical Panel :- Consist of VFD, PLC HMI which automatically control solid and liquid flow, Mixing rate and feed rate.
System Model
Sr No |
Solid flow kg/Hr. |
Liquid Flow Kg/Hr |
Mixing Flow Outlet Kg/Hr |
Required Power(KW) |
| MEPLS 500 | 500 to 600 | 1000 to 2000 | 1500 to 2600 | 40 |
| MEPLS 1000 | 1000 to 1200 | 2000 to 5000 | 3000 to 6200 | 55 |
| MEPLS 1500 | 1500 to 1800 | 3000 to 7500 | 4500 to 9300 | 70 |
| MEPLS 2000 | 2000 to 2500 | 4000 to 10000 | 6000 to 12500 | 90 |
We take great pride in being India's leading manufacturer of mixing machines for liquid manure and paddy straw. Furthermore, we are experts in Ribbon Blender Mixer Machines in India, offering cutting-edge solutions for effective processing and mixing. In addition to our manure mixing technology, our Ribbon Blender Mixer Machines in India provide superior performance and versatility.
